ASME B16.11 Socket Weld Tee , ASME B16.11 Socket Weld Tee Dimensions , Pipe Fittings
Manufacturer , Exporter & Supplier of ASME B16.11 Socket Weld Tee , ASME B16.11 Socket Weld Tee Dimensions ,Socket Weld Tee , Socket Weld Fittings
ASME B16.9 Socket Weld Tee , ASME B16.11 Socket Weld Tee Dimensions, ASME B16.11 Socket Weld Tee at best price with high quality
Stainless Vision India is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.11 Socket Weld Tee standards in Elbows, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Socket Weld Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.11 Socket Weld Tee to Kuwait, Egypt and Qatar.
Specifications of ASME B16.11 Socket Weld Tee
Stainless Steel ASME B16.11 Socket Weld Tee | Carbon Steel ASME B16.11 Socket Weld Tee | Nickel Alloys ASME B16.11 Socket Weld Tee
Size : 1/2″NB TO 4″NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps | ½ – 4 | ½ – 2 | ½ – 2 |
| ½ – 4 | ½ – 2 | ½ – 2 | |
| ½ – 4 | ½ – 2 | ½ – 2 | |
| Pipe Size by Wall Thickness | SCH 80 & XS | SCH 160 | XXS |

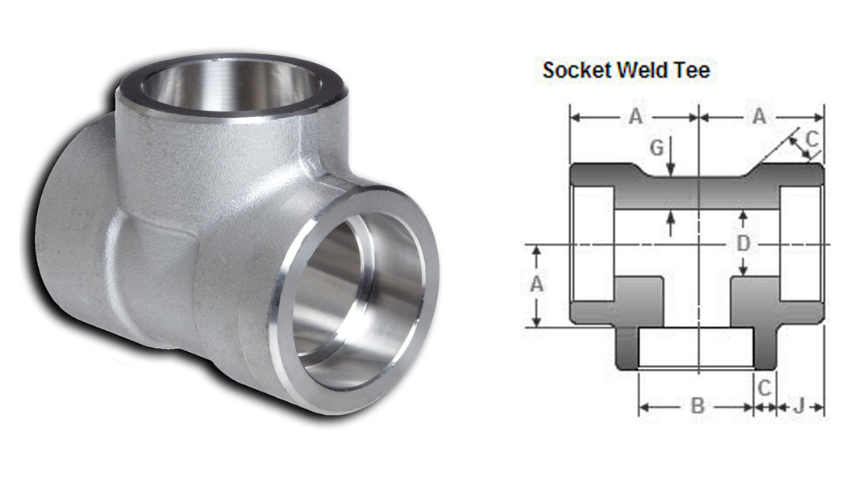

Dimensions of ASME B16.11 Socket Weld Tee
| NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Body wall thickness |
Center to bottom of socket |
| B | J | D | C | G | A | |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
3.75 | 15.5 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
3.90 | 19.5 |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
4.55 | 22 |
| 1¼ | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
4.85 | 27 |
| 1½ | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
5.10 | 32 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
5.55 | 38 |
| 2½ | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
7.00 | 41.5 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
7.60 | 57.5 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
8.55 | 66.5 |
Dimensions Socket Weld Tees - NPS 1/2 to 2 - 6000 LBS - ASME B16.11
| NPS | Socket Bore | Depth Socket | Bore diameter | Socket wall thickness | Body wall thickness | Center to bottom of socket |
| B | J | D | C | G | A | |
| 1/2 | 21.95 21.70 | 10 | 12.5 11 | 5.95 5.20 | 4.80 | 19.5 |
| 3/4 | 27.30 27.05 | 13 | 16.3 14.8 | 6.95 6.05 | 5.55 | 22.5 |
| 1 | 34.05 33.80 | 13 | 21.5 19.9 | 7.90 6.95 | 6.35 | 27 |
| 1¼ | 42.80 42.55 | 13 | 30.2 28.7 | 7.90 6.95 | 6.35 | 32 |
| 1½ | 48.90 48.65 | 13 | 34.7 33.2 | 8.90 7.80 | 7.15 | 38 |
| 2 | 61.35 61.10 | 16 | 43.6 42.1 | 10.90 9.50 | 8.75 | 41 |
Applications Of ASME B 16.11 Socket Weld Tee
- ASME B 16.11 Socket Weld Tee used in Chemical and petrochemical processing
- ASME B 16.11 Socket Weld Tee used in refineries
- ASME B 16.11 Socket Weld Tee used in electronics
- ASME B 16.11 Socket Weld Tee used in fertilizer
- ASME B 16.11 Socket Weld Tee used in power plant
- ASME B 16.11 Socket Weld Tee used in nuclear power
- ASME B 16.11 Socket Weld Tee used in oil and gas
- ASME B 16.11 Socket Weld Tee used in paper industries
