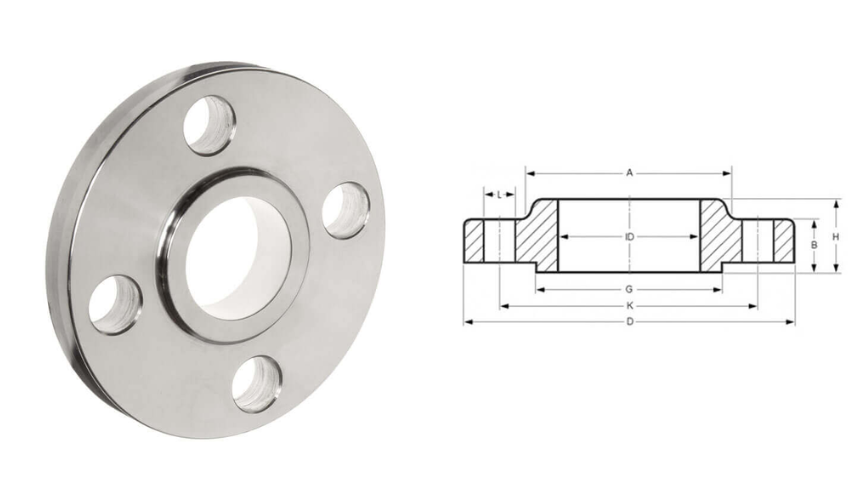

What are Slip On Flanges?
Slip On Flanges are ingeniously designed to offer a perfect balance between ease of use and robust performance. Made from premium-grade materials such as stainless steel, carbon steel, and alloy steel, they are built to withstand various environmental conditions, ensuring longevity and durability. The primary characteristic of these flanges is their ability to easily slip over the end of a pipe. Once positioned, they are welded inside and outside, creating a secure and sturdy joint. This dual welding process not only enhances the strength of the connection but also significantly reduces the risks of leaks, making these flanges an essential component in any piping system.
The applications of our Slip On Plate Flanges are vast and varied. They are extensively used across industries like water distribution, chemical processing, oil and gas, and power generation. Their ability to manage fluid flow efficiently makes them ideal for systems that demand secure and uninterrupted operations.
One of the most significant advantages of Slip On Pipe Flanges is their ease of installation. They are lighter in weight compared to other types of flanges, which not only simplifies the handling process but also reduces the overall cost of the piping system. Also, their design allows for a lower initial cost, making them a cost-effective solution without compromising quality or performance.
ASTM A182 SS Slip on Flange, Slip on Flange Dimensions, Alloy Steel Slip on Plate Flanges, ASME B16.47 Series A and B SORF Flanges, Nickel Alloy 200 SORF Flange, Carbon Steel Slip on Flange, Manufacturer of Slip On Forged Flanges, MSS SP-44 Slip on Flanges in Mumbai, India.
At Stainless Vision India, we specialize in providing top-quality flanges that play a pivotal role in numerous piping systems, offering a blend of reliability and efficiency. Along with SORF Flanges, we manufacture Blind Flanges, Weld Neck Flanges, & so on.
SORF Flange, Slip On Flange Manufacturers, SS Sorf Flange, Slip On Flanges Dimensions, Slip On Flange Flat Face, Slip On Reducing Flange, Slip On Flange Raised Face, Slip On Flange Types, SORF 150 Flange, SS Slip On Flange, Slip On Plate Flanges, Slip On Lap Joint Flange, Slip On Orifice Flange, Slip On Flanges Class 150, Slip On Weld Flange, Slip On Flange Dimensions, Carbon Steel Slip On Flange, Slip On Raised Face Flanges, Stainless Steel Slip On Flange Suppliers, Slip On Flanges Manufacturers In India.
Standard Specification For Slip On Flanges
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Material & Grades of Slip On Flanges (SORF) :
Stainless Steel Slip On Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Slip On Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Slip On Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Slip on Flanges : ASTM A350, LF2, LF3
Alloy Steel Slip On Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Slip On Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Slip On Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
ASME B16.5 Raised Faced Slip-On Flanges Available Types
| Slip on Raised Face Flange | Raised Faced Slip-On Flanges |
| ANSI B16.5 Slip On Flanges | Slip on Flange Dimensions |
| ASME B16.5 SORF Flanges | ANSI B16.5 Class 150 Slip-On Flanges |
| Stainless Steel Slip on Flanges Suppliers | SS Slip on Flange |
| Slip on Plate Flanges Dealer | ASME B16.47 Series A and B SORF Flanges Exporter |
| ANSI B16.5 class 150 SORF Flange Stockholder | ANSI 150 Slip on Flange Distributors |
| Carbon Steel Slip on Flange | High Quality SORF Flanges Manufacturer |
| ASTM A182 Stainless Steel SORF Flange | Duplex Steel Slip on Flange |
| Super Duplex Steel Slip on Forged Flange | Copper Nickel Slip on Pipe Flanges |
| High Nickel Alloy SORF Flanges | Hastelloy Flat Faced Slip-On Flanges Stockist |
| Titanium ASME B16.47 Series A and B SORF Flanges | Inconel Slip on Flanges |
ANSI B16.5 Slip On Flanges Application
ASME B16.5 Slip on Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Flat Faced Slip-On Flanges through a worldwide network of stock-keeping branches. These Slip On Flange is use in various industries like :
- Stainless Steel Slip on Flanges uses in Oil and Gas Pipeline
- Slip on Raised Face Flanges uses in Chemical Industry
- Alloy Steel SORF Flanges uses in Plumbing
- Flat Faced Slip-On Flanges uses in Heating
- Slip on Pipe Flanges uses in Water Supply Systems
- ANSI B16.5 Slip on Forged Flanges uses in Power Plant
- Slip On Plate Flanges uses in Paper & Pulp Industry
- Slip On Flange uses in General Purpose Applications
- Steel Slip on Flanges uses in Fabrication Industry
- Slip on Flange uses in Food Processing Industry
- Slip on Flanges uses in Structural Pipe
150 ANSI Flange SS Slip On Flanges FOB Price
| 1″ Slip On Flanges 304/304L SS 150# S10, O=4.25 ,C=.56 ,R=2.00, X=1.94,Y1=2.19, Price: $31.32 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .62, Bolt Circle 3.12, (approx) 2 lb |
1 1/2″ Slip On Flanges 304/304L SS 150# S10, O=5.00 ,C=.69 ,R=2.88, X=2.56,Y1=2.44 Price: $44.82 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .62, Bolt Circle 3.88, (approx) 3 lb |
2″ Slip On Flanges 304/304L SS 150# S10, O=6.00 ,C=.75 ,R=3.62, X=3.06,Y1=2.50 Price: $49.68 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .75, Bolt Circle 4.75, (approx) 5 lb |
6″ Slip On Flanges 304/304L SS 150# S10, O=11.00 ,C=1.00 ,R=8.50, X=7.56,Y1=3.50 Price: $197.64 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 8, diameter .88, Bolt Circle 9.50, (approx) 19 lb |
| 2 1/2″ Slip On Flanges 304/304L SS 150# S10, O=7.00 ,C=.88 ,R=4.12, X=3.56,Y1=2.75 Price: $75.06 |
3″ Slip On Flanges 304/304L SS 150# S10, O=7.50 ,C=.94 ,R=5.00, X=4.25,Y1=2.75 Price: $82.08 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .75, Bolt Circle 6.00, (approx) 8 lb |
4″ Slip On Flanges 304/304L SS 150# S10, O=9.00 ,C=.94 ,R=6.19, X=5.31,Y1=3.00 Price: $114.48 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 8, diameter .75, Bolt Circle 7.50, (approx) 13 lb |
10″ Slip On Flanges 304/304L SS 150# S10, O=16.00 ,C=1.19 ,R=12.75, X=12.00,Y1=4.00 Price: $494.10 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 12, diameter 1.00, Bolt Circle 14.25, (approx) 43 lb |
| 12″ Slip On Flanges 304/304L SS 150# S10, O=19.00 ,C=1.25 ,R=15.00, X=14.38,Y1=4.50 Price: $771.12 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 12, diameter 1.00, Bolt Circle 17.00, (approx) 64 lb |
1/2″ Slip On Flanges 304/304L SS 150# S40, O=3.50, C=.44, R=1.69, X=1.19,Y1=1.88 Price: $24.30 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .62, Bolt Circle 2.38, (approx) 1 lb |
3/4″ Slip On Flanges 304/304L SS 150# S40, O=3.88 ,C=.50 ,R=1.69, X=1.50,Y1=2.06 Price: $27.00 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .62, Bolt Circle 2.75, (approx) 2 lb |
1″ Slip On Flanges 304/304L SS 150# S40, O=4.25 ,C=.56 ,R=2.00, X=1.94,Y1=2.19, Price: $31.32 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .62, Bolt Circle 3.12, (approx) 2 lb |
| 1 1/4″ Slip On Flanges 304/304L SS 150# S40, O=4.62 ,C=.62 ,R=2.50, X=2.31,Y1=2.25 Price: $44.82 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .62, Bolt Circle 3.50, (approx) 3 lb |
1 1/2″ Slip On Flanges 304/304L SS 150# S40, O=5.00 ,C=.69 ,R=2.88, X=2.56,Y1=2.44 Price: $44.82 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .62, Bolt Circle 3.88, (approx) 3 lb |
2 1/2″ Slip On Flanges 304/304L SS 150# S40, O=7.00 ,C=.88 ,R=4.12, X=3.56,Y1=2.75 Price: $75.06 Slip On Flanges 150# – SPECIFY AT ORDER (Bore B1), Bolt Holes 4, diameter .75, Bolt Circle 5.50, (approx) 7 lb |
