Stainless Vision India is a dynamic group, which was established over a decade ago to cater to the growing demands of ASME B16.11 Socket Weld Full coupling standards in Elbows, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We manufacture, Export, and Supply Socket Weld Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.11 Socket Weld Full coupling to Kuwait, Egypt and Qatar.
Specifications of ASME B16.11 Socket Weld Full coupling
Stainless Steel ASME B16.11 Socket Weld Full coupling | Carbon Steel ASME B16.11 Socket Weld Full coupling |Nickel Alloys ASME B16.11 Socket Weld Full coupling
Size : 1/2″NB TO 4″NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
Material and Grades:
Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
½ – 4 | ½ – 2 | ½ – 2 |
| ½ – 4 | ½ – 2 | ½ – 2 | |
| ½ – 4 | ½ – 2 | ½ – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 & XS | SCH 160 | XXS |

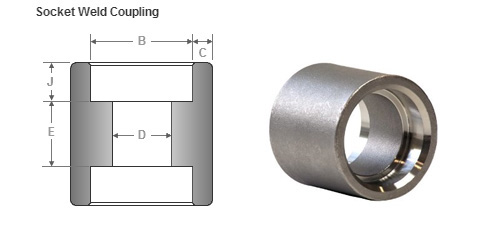

Dimensions of ASME B16.11 Socket Weld Full coupling
|
NPS
|
Socket
Bore |
Depth
Socket |
Bore
diameter |
Socket
wall thickness |
Laying lengths
|
|
B
|
J
|
D
|
C
|
Coupling
E |
|
|
1/2
|
21.95
21.70 |
10
|
16.6
15 |
4.65
4.10 |
9.5
|
|
3/4
|
27.30
27.05 |
13
|
21.7
20.2 |
4.90
4.25 |
9.5
|
|
1
|
34.05
33.80 |
13
|
27.4
25.9 |
5.70
5.00 |
13
|
|
1¼
|
42.80
42.55 |
13
|
35.8
34.3 |
6.05
5.30 |
13
|
|
1½
|
48.90
48.65 |
13
|
41.7
40.1 |
6.35
5.55 |
13
|
|
2
|
61.35
61.10 |
16
|
53.5
51.7 |
6.95
6.05 |
19
|
|
2½
|
74.20
73.80 |
16
|
64.2
61.2 |
8.75
7.65 |
19
|
|
3
|
90.15
89.80 |
16
|
79.5
46.4 |
9.50
8.30 |
19
|
|
4
|
115.80
115.45 |
19
|
103.8
100.7 |
10.70
9.35 |
19
|
Applications Of ASME B 16.11 Socket Weld Full coupling
- ASME B 16.11 Socket Weld Full coupling used in Chemical and petrochemical processing
- ASME B 16.11 Socket Weld Full coupling used in refineries
- ASME B 16.11 Socket Weld Full coupling used in electronics
- ASME B 16.11 Socket Weld Full coupling used in fertilizer
- ASME B 16.11 Socket Weld Full coupling used in power plant
- ASME B 16.11 Socket Weld Full coupling used in nuclear power
- ASME B 16.11 Socket Weld Full coupling used in oil and gas
- ASME B 16.11 Socket Weld Full coupling used in paper industries
