Socket Weld 45 Degree Elbow

  1. Home
  2. Socket Weld 45 Degree Elbow

ASME B16.11 45 Degree Socket Weld Elbow

Manufacturer of ANSI B16.11 Forged Elbow in Mumbai, India, 3000lb Elbow SW Suppliers.

An elbow is installed between two lengths of pipe or tubes. Socket Weld 45 Degree Elbow allow a change of direction, usually a 90° or 45 Degree Socket Weld Elbow & 22.5° elbows are also available in the market. The ends of the elbow may be machined for butt welding, threaded for usually female elbows, or socketed like the 45 Degree Socket Weld Elbow or the Carbon Steel 45 Degree Sw Elbow. 45° Socket Weld Elbow can also be categorized by length.
Socket Weld Long Radius 45 Degree Elbows are used in low-pressure gravity-fed systems as well as other applications where low turbulence and minimum deposition of entrained solids are of primary concern.

This Standard covers the specifications of the Asme B16.9 45 Deg Socket Weld Elbow overall tolerances, testing, ratings, and markings for factory-made wrought buttwelding fittings. This specification also covers 45 Degree Socket Weld Elbow Dimensions. These Ansi B16.9 45 Degree Elbow 3000lb Socket Weld are covered in sizes NPS 1 ∕ 2 through NPS 48 or DN 15 through DN 1200. The specification Ansi B16.9 45 Deg Forged Socket Weld Elbow also covers fittings of any producible wall thickness, although this standard does not cover buttwelding fittings meant for low pressure corrosion resistant.

ASME B16.11 Pipe Elbow 3000lb manufacturers, JIS B 2316 Carbon Steel 45 Degree Sw Elbow Exporter in India, B16.11 Socket Weld 45 Elbow stockholder, NPS 1/2 to 2 Stainless Steel Socket Weld 45 Deg. Elbow Price List in Mumbai.

The Street Elbow Asme B16.11 have been designated as per the pressure rating classes. At45 Degree Socket Weld Elbow, we are known to produce threaded end Forged Socket Weld Elbow 45 Degree in various classes. The Asme B16.11 Elbow Dimensions for pressure rating classes have been designated such as Class 2000, Class 3000, and Class 6000. We are also known as socket-weld end B16.11 Socket Weld 45 Elbow manufacturers of Class 3000, Class 6000, and Class 9000.Fittings like the Ansi B16.11 Elbow need to be used in conjunction with other equipment’s that have described in other volumes of the ASME B16 series of standards as well as with other ASME standards. Hence the Asme B16.11 Elbow, is used with other equipment’s such as the Boiler and Pressure Vessel Code and the B31 Piping Codes.

What is 45 Degree Socket Weld Elbow?

Ansi B16.9 45° Short Radius Socket Weld Elbow is meant to be used in concurrence with equipment’s that have been described in other volumes of the ASME B16 series of standards as well. They could also include being used other ASME standards, such as the B16.9 Stainless Steel Socket Weld 45 Deg. Elbow can be used with the Boiler and Pressure Vessel Code and the B31 Piping Codes.

Socket Weld 45 Degree Elbow Price List

SR NO DESCRIPTION NOS TOTAL PARASMANI PRICE TOTAL PRICE  TOTAL
1 ELBOW SIZE: 1/2″ SW CLASS 3000, 45 DEG. A182 F11/ 2 EA 24 105 2520 2.08 49.92
2 ELBOW SIZE: 3/4″ SW CLASS 3000, 45 DEG. A182 F11/ 2 EA 24 145 3480 2.88 69.12
3 ELBOW SIZE: 1″ SW CLASS 3000, 45 DEG. A182 F11/ 2 EA 24 200 4800 3.97 95.28
4 ELBOW SIZE: 1.5″ SW CLASS 3000, 45 DEG. A182 F11/ 2 EA 24 440 10560 8.73 209.52
5 ELBOW SIZE: 2″ SW CLASS 3000, 45 DEG. A182 F11/ 2 EA 24 750 18000 14.88 357.12

ASME B16.11 Socket Weld 45 Elbow Specification

45 Degree Socket Weld Elbow Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Street Elbow Asme B16.11 Size 1/2″NB TO 4″NB IN
Carbon Steel 45 Degree Sw Elbow Class 3000 LBS, 6000 LBS, 9000 LBS
B16.11 Socket Weld 45 Elbow Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
45 Degree Socket Weld Elbow Form 45 Deg Socket Weld Elbow, Long Radius Socket Weld 45 Deg Elbow, Short Radius 45 Deg Socket Weld elbow
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Forged Socket Weld Elbow 45 Degree Material

Carbon Steel 45 Degree Sw Elbow
  • ASTM A105 45 Degree Socket Weld Elbow
  • ASME SA105 45° Short Radius Socket Weld Elbow
  • ASTM A105N 45 Degree Socket Weld Elbow
  • ASME SA105N Forged Socket Weld Elbow 45 Degree
  • ASTM A350 LF2 45° Short Radius Socket Weld Elbow
  • ASME SA350 45 45° Short Radius Socket Weld Elbow
  • High Yield CS ASTM A694 45 degree elbow
Stainless Steel Socket Weld 45 Deg. Elbow
  • ASTM A182 F304 45 Degree Socket Weld Elbow
  • ASTM A182 F304L 45 Degree Elbow 3000lb Socket Weld
  • ASTM A182 F316
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347H
Alloy Steel 45 Degree Socket Weld Elbow
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium 45 Degree Socket Weld Elbow
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel 45 3000lb Socket Weld
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper 45 Degree Socket Weld Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 3000lb Socket Weld Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass 45° Short Radius Socket Weld Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy 45° Short Radius Socket Weld Elbow Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Monel 45 Degree Socket Weld Elbow Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 45° Socket Weld Elbow Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium 45° Short Radius Socket Weld Elbow 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel 45° Socket Weld Elbow Nickel 200 Forged, Nickel 201 Forged
Duplex S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex 45° Short Radius Socket Weld Elbow S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 45° Socket Weld Elbow Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)
254 Smo 45° Short Radius Socket Weld Elbow SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic Nimonic 75, Nimonic 80A, Nimonic 90
Other 45° Socket Weld Elbow material Tin bronze, Alumunum bronze, Lead bronze

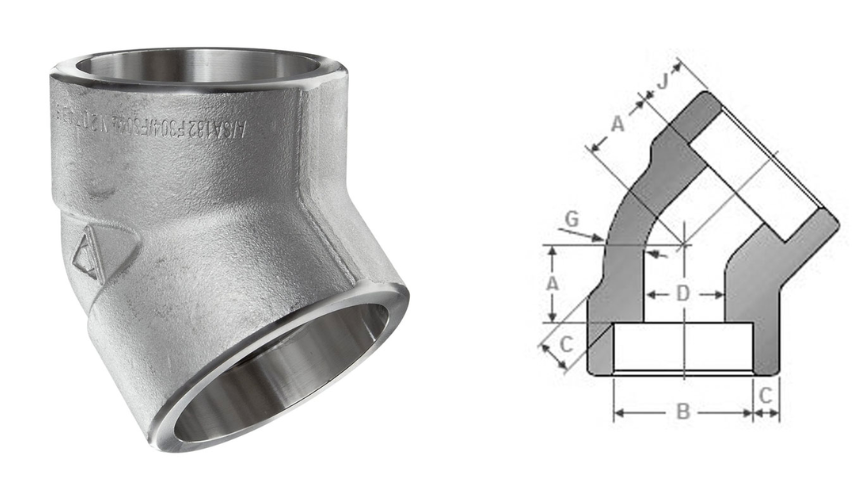

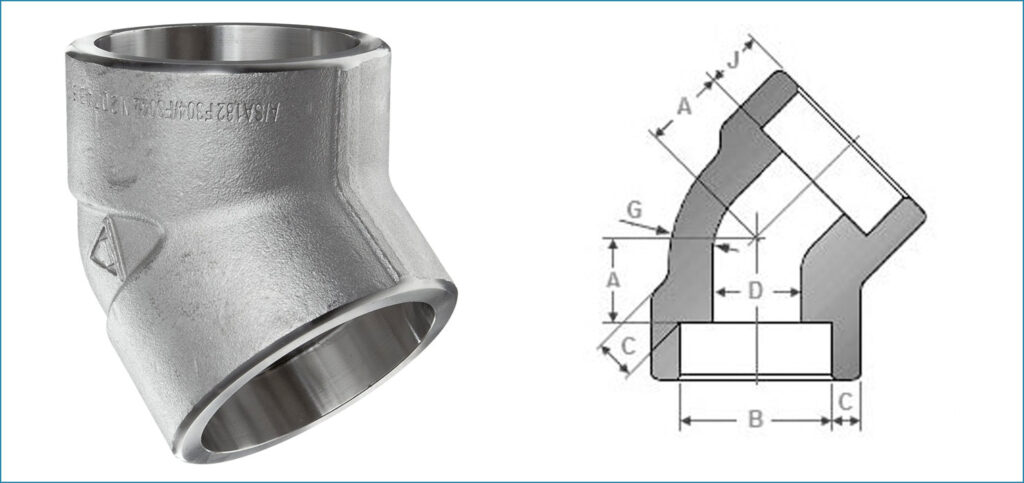

45 Degree Socket Weld Elbow Dimensions

NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
A
B J D C G 45°
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75 11.5
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90 12.5
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55 14
1¼ 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85 17
1½ 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10 21
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55 25
2½ 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00 29
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60 31.5
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55 41.5

45° Short Radius Socket Weld Elbow 6000 LBS

Check ASME B16.11 Elbow Dimensions & Forged Elbow Dimensions

NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
A
B J D C G 45°
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20		 4.80 12.5
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05		 5.55 14.5
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95		 6.35 17
1¼ 42.80
42.55		 13 30.2
28.7		 7.90
6.95		 6.35 21
1½ 48.90
48.65		 13 34.7
33.2		 8.90
7.80		 7.15 25
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50		 8.75 29

We offer an extensive range of 45 Degree Socket Weld Elbows In India

Forged Socket weld Elbow 45 Degree Forged Socket weld Long Radius 45 Degree Elbows
150 lb. Socket Weld Fittings Pipe Elbow Socket weld 45 Degree Short Radius Elbow
45 Degree Elbow 3000LB Socket Weld Carbon Steel Socket weld 45deg.Elbow
Super Duplex Steel 45 Deg Elbow High Nickel Alloy 45 Deg Forged Socket weld Elbow
Titanium 45 Degree Socket weld Elbow SS 45 Deg Forged Elbows
ANSI B16.11 45 Degree Forged Elbow BS 3799 Forged 45 Degree Elbow
ASTM A182 Socket weld Stainless Steel 45 Deg Elbows ASME 16.11 45 Deg Socket Weld Elbow
MSS SP-79 45 Degree Socket Weld Elbow ASTM A234 WP22 Socket Weld 45 Degree Elbow
