ANSI / ASME B16.11 90 Degree Socket Weld Elbow

Manufacturer of ANSI B16.11 Elbow 90 Sw 3000 in Mumbai, India, SS Sw Elbow 90 Deg Suppliers.

The Asme B16.11 90 Degree Elbow Standard covers parameters such as ratings, Socket Weld 90 Degree Elbow Dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These B16.11 Socket Weld Elbow 90 Degree have been designated as Class 2000, Class 3000, and Class 6000 for threaded end fittings and Class 3000, 6000, and 9000 for Asme B16.11 Socket Weld 90 Degree Elbow. B16.11 Forged Socket Weld Elbow 90 Degree must be used in aggregation with equipment described in other volumes of the ASME B16 series set of standards as well as with other ASME standards. For instance the Asme B16.11 90 Degree Socket Weld Elbow can be used with equipment such as the Boiler and Pressure Vessel Code and the B31 Piping Codes.

ASME B16.11 Elbow 90 Sw 3000 manufacturers, JIS B 2316 90 Degree Socket Elbow Exporter in India, Carbon Steel 90 Degree Sw Elbow stockholder, NPS 1/2 to 2 SS Elbow 90 Deg Sw Price List in Mumbai.

The radius of curvature of a LR or Socket Weld Long Radius 90 Degree Elbows is 1.5 times the pipe diameter. Long radius Stainless Steel Socket Weld 90 Deg. Elbow are used in low-pressure gravity-fed systems including other applications where low turbulence as well as minimum deposition of entrained solids are of concern.

On the other hand 90° Short Radius Socket Weld Elbow has a radius equal to the pipe diameter. Short radius 90 Degree Socket Weld Elbow is typically used in pressurized systems, as well as in physically tight locations.

What is ASME B16.11 Socket Weld 90 Degree Elbow?

An Elbow 90 Sw 3000 can be installed between two lengths of pipe. These 90 Degree Socket Elbow allow a change in the direction of flow. The ends can be machined for butt welding, threaded (usually female), or socketed like the 90 Degree Sw Elbow. When the ends of the Sw 90 Degree Elbow differ in size, they known as a reducing or reducer 90 Degree Elbow 3000lb Socket Weld.

Socket Weld 90 Elbow Price List

SR NO DESCRIPTION NOS TOTAL PARASMANI PRICE TOTAL PRICE  TOTAL
1 ELBOW SIZE: 1/2″ SW CLASS 3000, 90 DEG. A182 F11/2 EA 24 105 2520 2.08 49.92
2 ELBOW SIZE: 3/4″ SW CLASS 3000, 90 DEG. A182 F11/2 EA 24 145 3480 2.88 69.12
3 ELBOW SIZE: 1″ SW CLASS 3000, 90 DEG. A182 F11/2 EA 24 200 4800 3.97 95.28
4 ELBOW SIZE: 1.5″ SW CLASS 3000, 90 DEG. A182 F11/2 EA 24 440 10560 8.73 209.52
5 ELBOW SIZE: 2″ SW CLASS 3000, 90 DEG. A182 F11/2 EA 24 750 18000 14.99 359.76

90 Degree Socket Weld Elbow Specification

Socket Weld 90 Degree Elbow Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Socket Weld 90 Elbow Size 1/2″NB TO 4″NB IN
Elbow 90 Deg Sw Class 3000 LBS, 6000 LBS, 9000 LBS
90 Degree Socket Elbow Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Forged Socket Weld Elbow 90 Degree Form 90 Deg Socket Weld Elbow, Long Radius Socket Weld 90 Deg Elbow, Short Radius 90 Deg Socket Weld elbow
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Socket Weld Long Radius 90 Degree Elbows Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

90 Degree Socket Elbow Material

Carbon Steel 90 degree elbow
  • ASTM A105 90 Degree Socket Weld Elbow
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694 90 Degree Socket Weld Elbow
Stainless Steel Socket Weld 90 Deg. Elbow
  • ASTM A182 F304 90 Degree Socket Weld Elbow
  • ASTM A182 F304L
  • ASTM A182 F316
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel 90 degree elbow
  • ASTM A182 F5 90 Degree Socket Weld Elbow
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91 90 Degree Socket Weld Elbow
Titanium 90 degree elbow
  • ASTM B381 Titanium Gr. 1 90 Degree Socket Weld Elbow
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7 90 Degree Socket Weld Elbow
Inconel 90 Degree Socket Weld Elbow
  • Inconel 600 90 Degree Socket Weld Elbow
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper 90 Degree Sw Elbow/td>T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 90 Degree Sw ElbowCopper Nickel 90/10 (C70600 ) 90 Degree Socket Weld Elbow, Cupro Nickel 70/30 (C71500) , UNS C71640
Brass 90° Short Radius Socket Weld Elbow3602 / 2604 / H59 / H62 / etc.
Hastelloy 90 Degree Socket Weld ElbowHastelloy C276 (UNS N10276) 90 Degree Socket Weld Elbow, C22 (UNS N06022) , C4 , C2000 , B2 , B3 , X
Monel 90° Short Radius Socket Weld ElbowMonel 400 (UNS No. N04400) , Monel 500 (UNS No. N05500)
Alloy 20 90 Degree Socket Weld ElbowCarpenter® 20 Alloy 90 Degree Socket Weld Elbow, Alloy 20Cb-3
Aluminium 90 degree elbow5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel 90 degree elbowNickel 200 90 Degree Socket Weld Elbow, Nickel 201
Duplex w 90 Degree ElbowS31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex wS32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 90 degree elbowIncoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)
254 Smo 90 Degree Elbow 3000lb Socket WeldSMO 254/6Mo, UNS S31254 90 Degree Socket Weld Elbow, DIN 1.4547
Nimonic 90 Degree Elbow 3000lb Socket WeldNimonic 75, Nimonic 80A, Nimonic 90
Other 90° Short Radius Socket Weld Elbow materialTin bronze 90 Degree Socket Weld Elbow, Alumunum bronze, Lead bronze

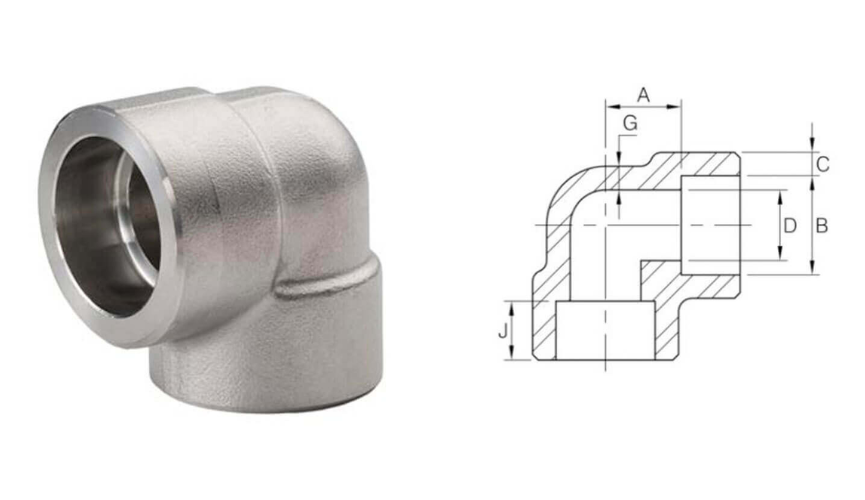

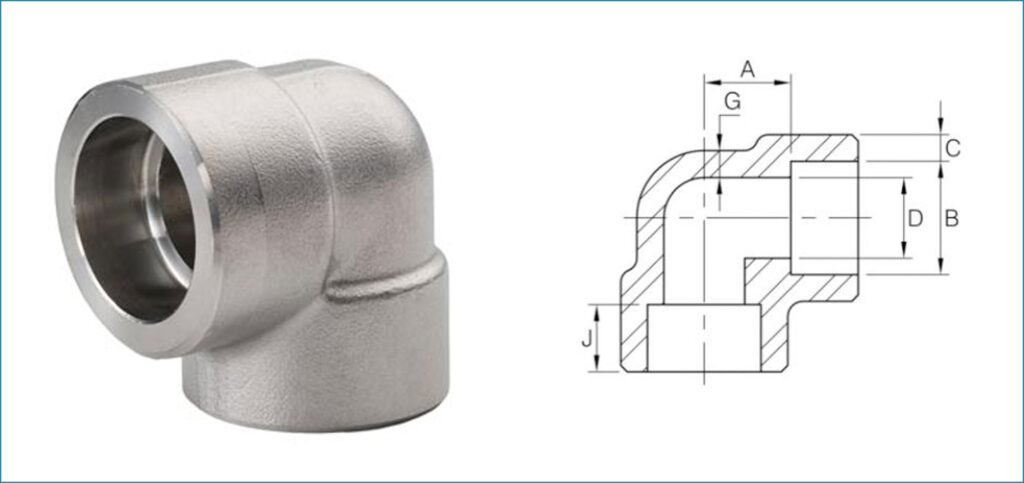

Socket Weld 90 Degree Elbow Dimensions

NPS Socket
Bore		 Depth
Socket		 Bore
DIA		 Socket
WT		 Body
WT
B J D C G
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55
1.1/4 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85
1.1/2 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55
2.1/2 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55

90 Degree Elbow 3000lb Socket Weld Dimensions NPS 1/2 to 2

NPS Socket
Bore		 Depth
Socket		 Bore
DIA		 Socket
WT		 Body
WT
B J D C G
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20		 4.80
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05		 5.55
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95		 6.35
1.1/4 42.80
42.55		 13 30.2
28.7		 7.90
6.95		 6.35
1.1/2 48.90
48.65		 13 34.7
33.2		 8.90
7.80		 7.15
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50		 8.75

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Socket Bore (B) – Maximum and minimum dimensions.
  • Bore Diameter (D) – Maximum and minimum dimensions.
  • Socket wall thickness – (C) – Average of Socket wall thickness.
  • Dimensional tolerances center to bottom of socket – (A)
    NPS 1/2 and NPS 3/4 = +/- 1.5 mm
    NPS 1 to NPS 2 = +/- 2 mm
    NPS 2.1/2 to NPS 4 = +/- 2.5 mm

Manufacturing Standards of Socket Weld 90 Deg Elbow

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

We are also manufactured these 90 Degree Socket Weld Elbow in BS, DIN, JIS, SAE & ISO Standards In India

90 Degree Socket Weld Elbow Sw 90 Degree Elbow
Socket Weld 90 Elbow B16.11 Socket Weld Elbow 90 Degree
Elbow 90 Sw 3000 Elbow 90 Deg Sw
90 Degree Socket Elbow Asme B16.11 90 Degree Elbow
90 Degree Sw Elbow Forged Socket Weld Elbow 90 Degree
Socket Weld Long Radius 90 Degree Elbows Stainless Steel Socket Weld 90 Deg. Elbow
90° Short Radius Socket Weld Elbow Ansi B16.9 90 Deg Forged Socket Weld Elbow
Asme B16.9 90 Deg Socket Weld Elbow 90 Degree Elbow 3000lb Socket Weld
